RHP B7007X2 TPP1 YZ Super Precision Angular Contact Ball Bearing,Vintage:
$70.00

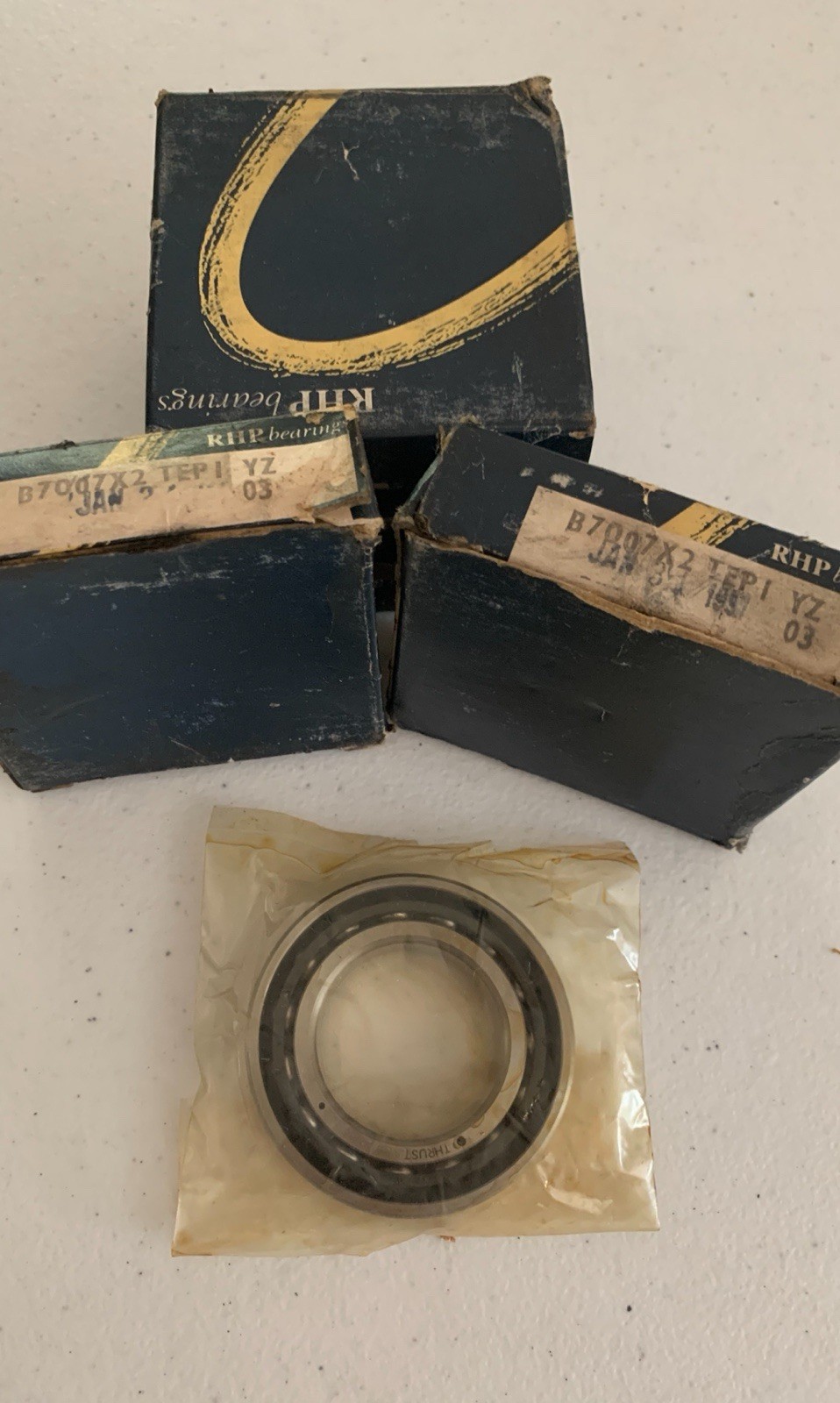

RHP B7007X2 TPP1 YZ Super Precision Angular Contact Ball Bearing
matching the 35 x 62 x 14 mm ISO dimension envelope (equivalent to FAG B7007-C-T-P4S or RHP 7007CD / EP7 series style codes).
Technical Profile
Bore Diameter (d): 35 mm
Outside Diameter (D): 62 mm
Width (B): 14 mm
Contact Angle: 15° (designated by X2 equivalent to C series)
Precision Class: EP7 / P4 (ABEC 7 equivalent).
Enclosure: Open (no seals)
Cage Type: Machined laminated phenolic resin (outer-ring guided)
Designation Breakdown:
B7007X2: B-series super-precision spindle bearing, 35 mm bore (07),
15° contact angle (X2)
TPP1 / YZ: Factory/customer-specific packaging, inspection, or clearance/preload special suffix block.
RHP: The manufacturer brand (originally a prominent British consolidation of Ransome & Marles, Hoffmann, and Pollard, currently managed under NSK).
Material Composition
Rings (Inner & Outer): High-carbon, chromium-alloy Bearing Steel (SAE 52100 / 100Cr6). This through-hardened steel provides exceptional wear resistance and dimensional stability under extreme mechanical loads.
Rolling Elements (Balls): High-Carbon Chrome Steel.
Cage / Retainer (TPP1 Suffix): Textile-Reinforced Phenolic Resin (Machined).
Core Dimensions & FitType: Single-row angular contact ball bearing (open, high-speed spindle grade).Load Capacity: Handles combined radial and axial loads in one direction.
